Corvette

DIMENSIONS | POWERTRAIN

2009 corvettecoupe

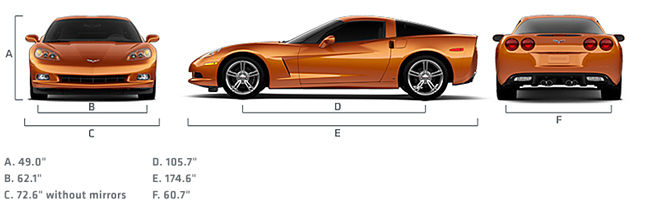

Dimensions

Dimensions LT 1LT LT 2LT LT 3LT LT 4LT
Overall Length 174.6 in 174.6 in 174.6 in 174.6 in
Overall Width 72.6 in 72.6 in 72.6 in 72.6 in
Overall Height 49.0 in 49.0 in 49.0 in 49.0 in
Wheelbase 105.7 in 105.7 in 105.7 in 105.7 in
Front Head Room 37.9 in 37.9 in 37.9 in 37.9 in
Front Hip Room 53.6 in 53.6 in 53.6 in 53.6 in
Front Leg Room 43.1 in 43.1 in 43.1 in 43.1 in
Front Shoulder Room 55.2 in 55.2 in 55.2 in 55.2 in
Seating Capacity 2 2 2 2
Cargo Volume 22.4 ft3 22.4 ft3 22.4 ft3 22.4 ft3
Front Tread Width 62.1 in 62.1 in 62.1 in 62.1 in
Rear Tread Width 60.7 in 60.7 in 60.7 in 60.7 in
Curb Weight 3217 3217 3217 3217

Powertrain

Powertrain LT 1LT LT 2LT LT 3LT LT 4LT
Standard Engine Gas V8 Gas V8 Gas V8 Gas V8
Displacement (liters/ cu in.) 6.2L/378.3 6.2L/378.3 6.2L/378.3 6.2L/378.3
Transmission 6 Manual w/OD 6 Manual w/OD 6 Manual w/OD 6 Manual w/OD
Horsepower @ RPM 430 @ 5900 430 @ 5900 430 @ 5900 430 @ 5900
Torque @ RPM 424 @ 4600 424 @ 4600 424 @ 4600 424 @ 4600
Front Suspension Short/Long Arm Short/Long Arm Short/Long Arm Short/Long Arm
Rear Suspension Short/Long Arm Short/Long Arm Short/Long Arm Short/Long Arm
Drivetrain Rear Wheel Drive Rear Wheel Drive Rear Wheel Drive Rear Wheel Drive
Fuel Injection Sequential Fuel Injection Sequential Fuel Injection Sequential Fuel Injection Sequential Fuel Injection
Axle Ratio 3.42 3.42 3.42 3.42
4- wheel ABS Standard Standard Standard Standard
4-wheel Disc Brakes Standard Standard Standard Standard
StabiliTrak Electronic Stability Control System Standard Standard Standard Standard
Traction Control System Standard Standard Standard Standard
